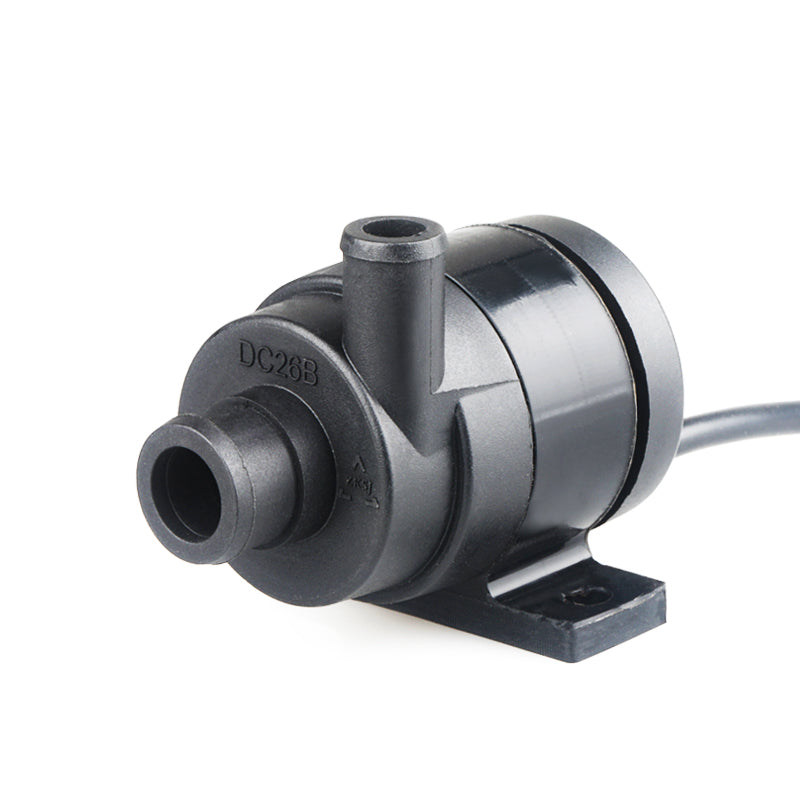

ZKSJ water pump 5V/12V fish tank water pump mini USB power bank power supply
ZKSJ water pump 5V/12V fish tank water pump mini USB power bank power supply
Couldn't load pickup availability
Product Image
Main Feature
1.DC Low voltage safe and reliable
2.Three phase brushless sine wave control technology
3.Eliminate high-frequency electromagnetic noise, smooth and silent
4.The pump body and the drive can be separated and resistant to high temperature
5.Magnetic isolation design, leakage proof, waterproof grade IP68.
6.Acid, alkali and salt corrosion resistance, oil resistance, organic solvents and other liquid media (consult in advance)
7.Constant power can be customized (for example, 12V 80W water pump, Constant Power 80W with voltage varying between 12v-24v)
8.Constant speed can be customized (keep the speed unchanged when the load changes)
9.Accurate dry run protection and Jam protection based on current detection (programmable protection mechanism)
10.Soft start eliminates the peak voltage and reduces the starting current
11.Suitable for Music fountain and other high-frequency start- stop application
12.MPPT function can be customized for solar power supply to avoid poor startup when the light is weak.
13.The pump and pump control system can be customized for various application environment requirements
Specification
|
Model No.: DC26B-1240S
|
|
|
Inlet (Out diameter): 14mm
|
Outlet (Out diameter): 10mm
|
|
Size:50mm * 46mm * 44mm
|
Weight: about 220g
|
|
Rated Voltage: 12V
|
Rated Current:0.75A
|
|
Material: PA66+30%FG(Optional)
|
Max working temperature:60℃
|
|

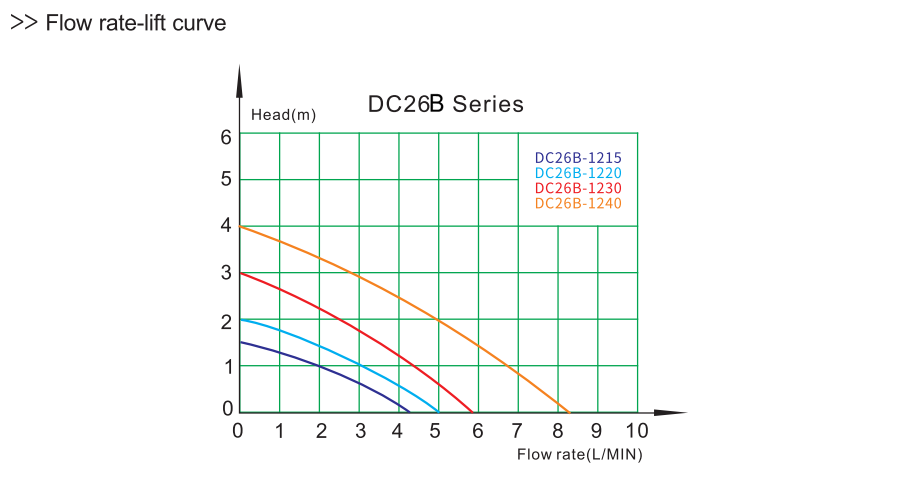

Max Static Head: 4 meters
|
Max Flow Rate:500L/H
|
|
Working: Continuous
|
Default Plug: No Plug (Can be customized)
|
|
Cable Length:1M
|
Speed Adjustable: No
|
|
Power supply: Solar panel, Battery, adaptor,Power Module
|
Self-priming: No
|
|
Jam protection
|
When jam it will Stop to protect itself.
|
|||
|
Dry run protection
|
The pump will Stop(8S) and start(2s) repeatedly to protect itself(can be customized).
|
|||
|
Overloading protection
|
When the voltage exceeds the rated power, the pump will stop.
|
|||
|
Reverse protection
|
Wrong connection of the power supply(positive and negative), the water pump will stop running, and then re-connected, can work normally.
|
|||
Application
Brushless DC pumps are widely used in various fields such as Automotive & Mobile, Home Appliances, Laboratory & Testing, Commercial And Industrial, Printing & Packaging, Environmental & Water Treatment, Food & Beverage, and etc.
